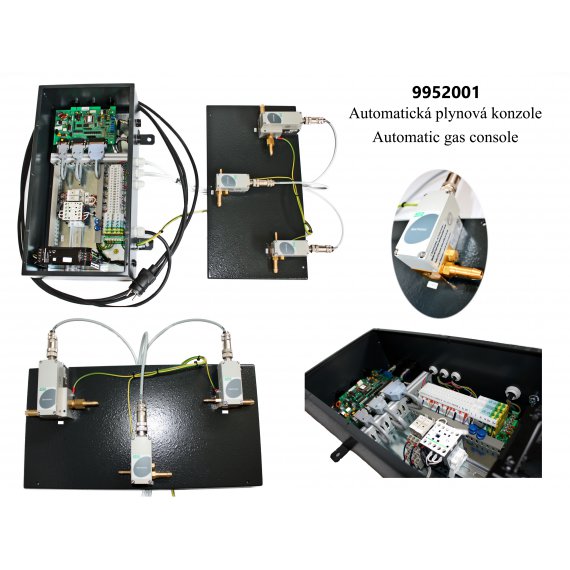

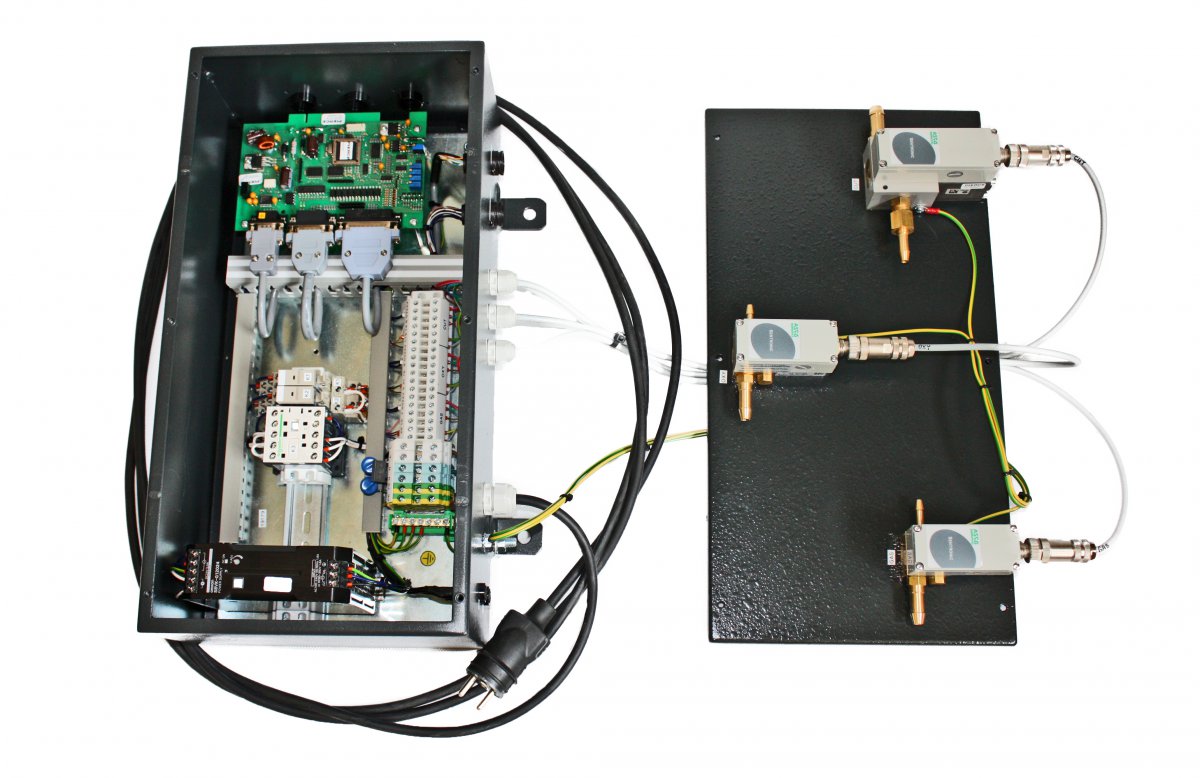

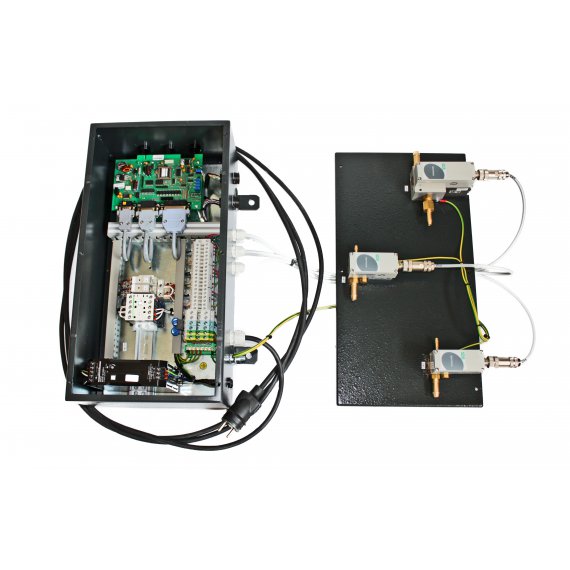

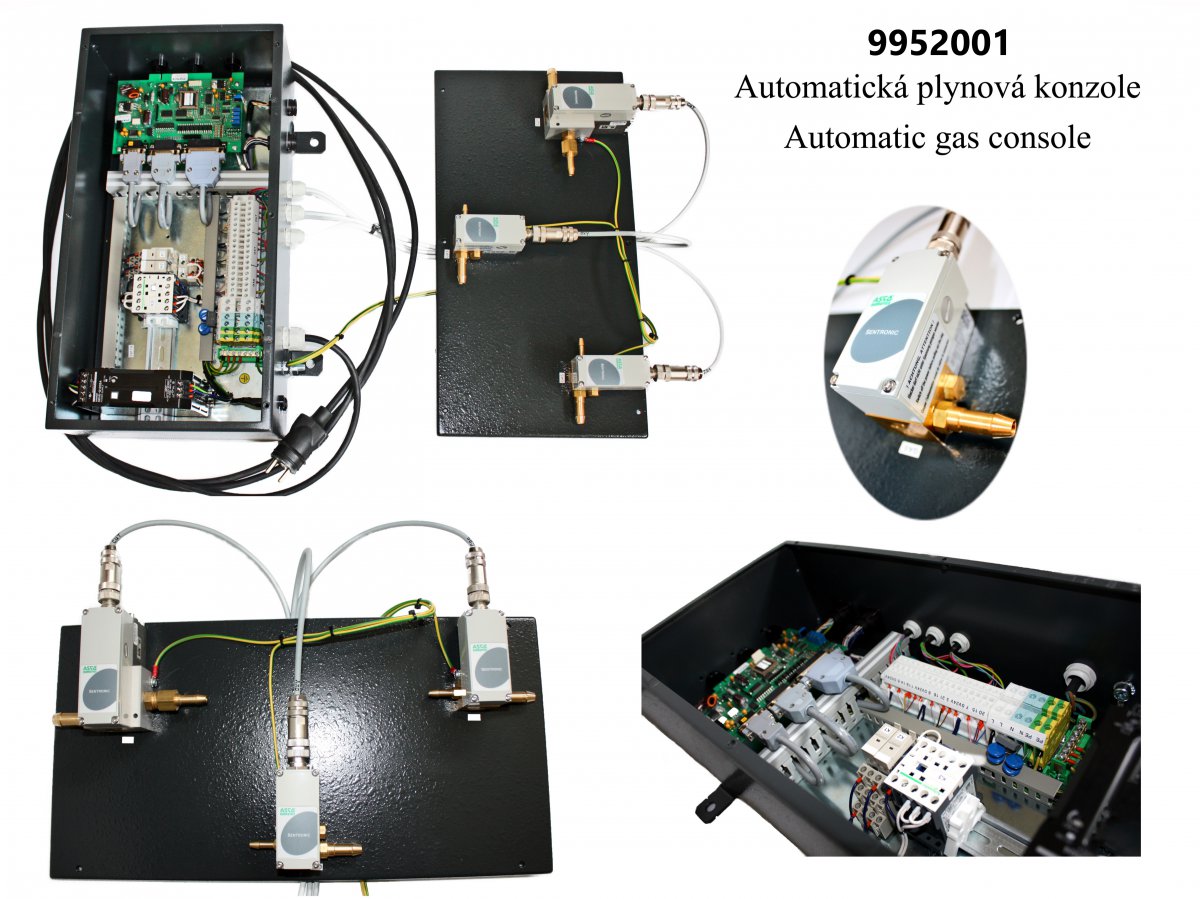

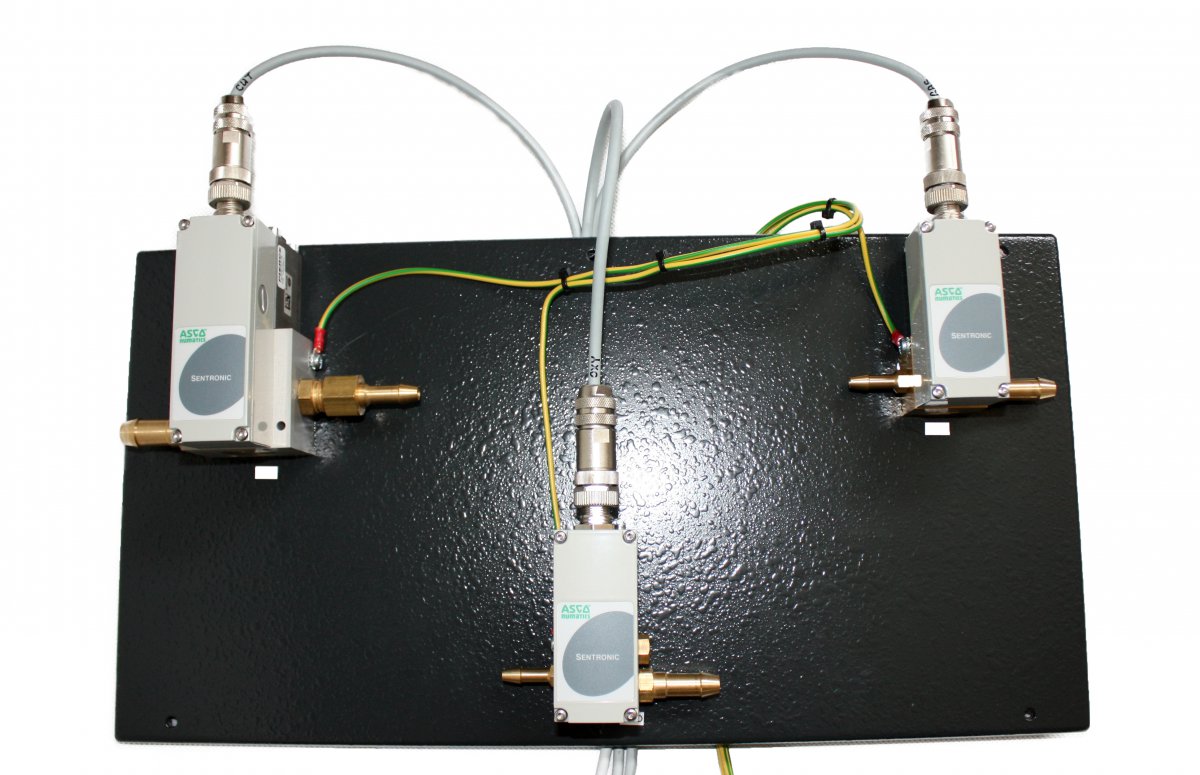

The automatic gas console serves for control of the pressure of gases and the course of its change during the process of cutting of steel sheets by means of oxyacetylene torches. The changes of pressure are done automatically on the basis of input control signals and selected values.
Technical Data:

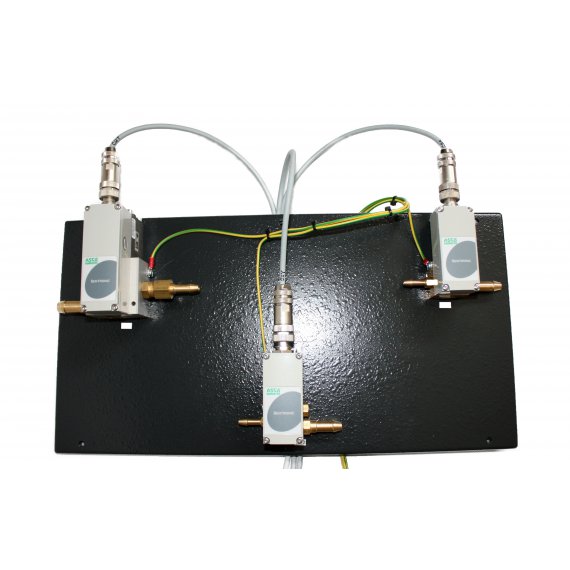

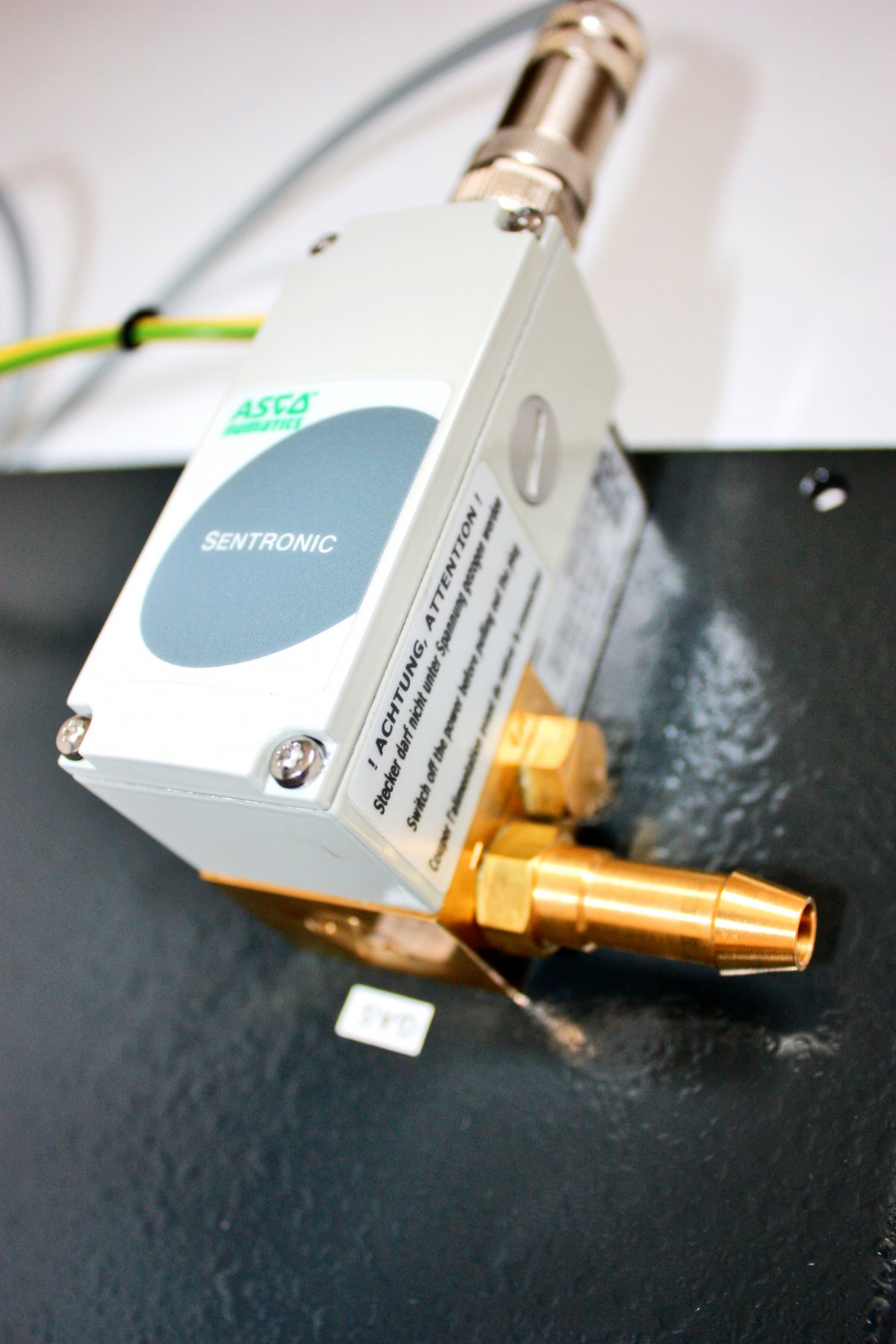

- Number of regulating valves: 3
- Types of regulated quantities:
- Pressure of preheating gas (0-1bar, or 0-3bar)
- Pressure of preheating oxygen (0-3bar, or 0-6bar, or 0-10bar)
- Pressure of cutting oxygen with the possibility of change of the course (max. 10 bar, maximum time of run up of the pressure 10 sec, minimum time 0,1 sec, the course is approximated in 64 points)
- Maximum values of input pressures:
- Preheating gas: 2bar, or 8bar
- Preheating oxygen: 8bar, or 12bar
- Cutting oxygen: 12bar
- Control - Selection of values of the quantities from the touch screen of the controller or from a PC with Windows XP, Windows Vista operating system. Starting is provided from the existing operating panel.
- Connection to the controller - By the RS232 communication interface, the input of the unit is galvanically separated.
- Connection to the operating panel - By relay contacts.
