Control Systems

Design

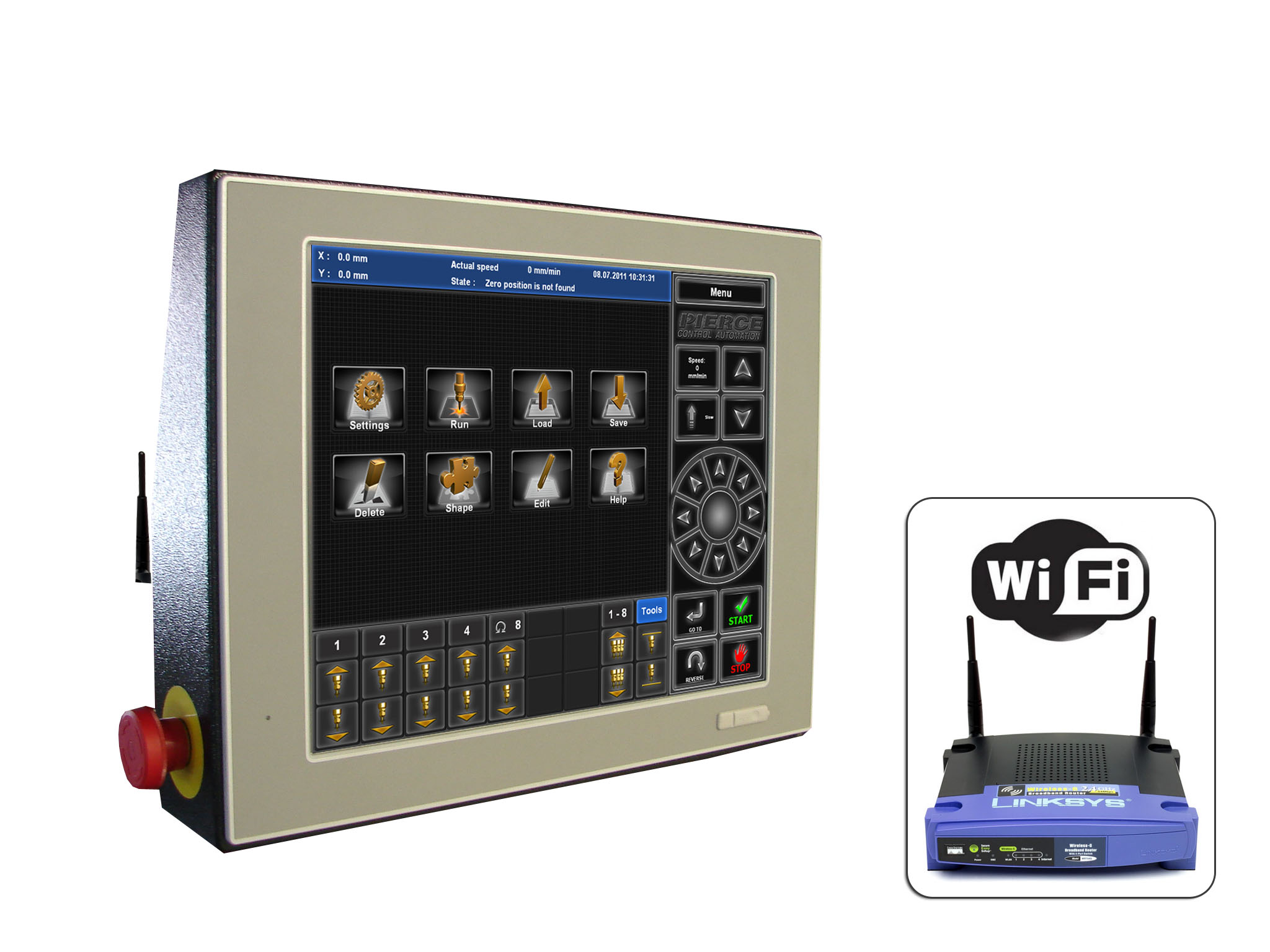

• The base of the control system is a very durable industrial computer which do not need to be cooled under routine working conditions.
• Computer data are stored into Compact Flash Disc. This design completely eliminates faults due to fatigue or damage of moving parts.
• The industrial version of a colour touch screen guarantees Its long endurance and high reliability even under extremely dusty environmental and climatic conditions. A great benefit from the viewpoint of the service life and maintenance is absence of mechanical push-buttons and controls.

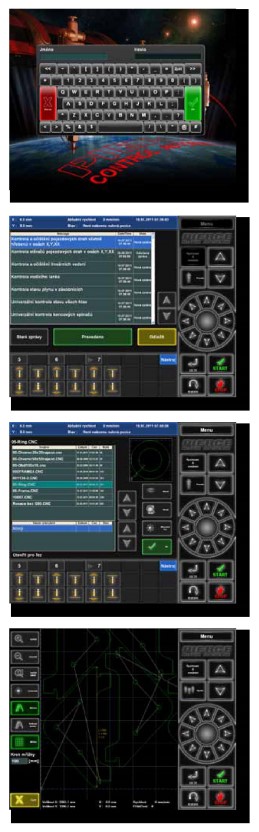

• The communication interface helps the operator in an intelligible and intuitive way in preparation of cutting and during the process. Each screen of the machine can be adapted to the particular spcification of the machine and to the currently used technology.
• This fact together with logical succession of separate steps of the control process makes the system very simple for training operators. Large controls make the operative control even easier using a touch display.
• This system could be used all over the world thanks to unambiguous images of the controls together with different language versions of legends and reports.

SPECIFICATION AND OPERATING ENVIRONMENT:

• Windows XP Embedded Platform: The use of this platform provides a lot of benefits such as compatibility with other extensions based on such platform or on incorporation into your company network.
• Write protect: The basic operating system is protected against overwriting. That function prevents unwanted changes and writes into the system which could damage it.
• Hibernation mode: This function enables a fast start of the system when It is switched on.


• Communication interface: EtherCAT - Modern communication digital interface that makes possible to communicate at the real time with up to 40 servo-units working simultaneously on the basis.


• Standard range of operating temperature: 0 - 50 °C
• 95% humidity (non-condensing)
• It can also be equipped with heating for the environment outside the range of the given operating values - for work in unheated halls in the cold climate or, on the other way, with cooling for areas with high summer temperatures.

HARDWARE SPECIFICATION

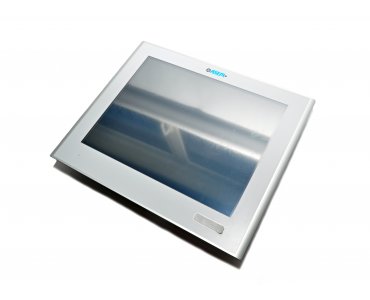

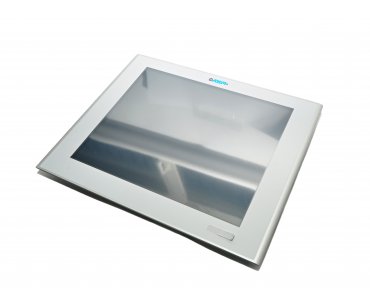

• Monitor (resistive touch screen):
     - 15” display TFT (resolution 1024 x 768)
     - 19” display TFT (resolution 1280 x 1024)
• Processor: Intel Atom 1600 MHz
• RAM: DDR2 1024MB
• HDD: Compact Flash 8GB
• Ports: 1x RS232, 3x USB 2.0 (2x back side, 1x side), 1x Ethernet 100Mbit/s, 1x EtherCAT 10Mbit/s
• Operating system: Windows XP Embedded
• Power supply: 24VDC / max. 2,5A
• Dimensions:
     - 15“ display - Š x V x H - 390 x 315 x 60 mm
     - 19“ display - Š x V x H - 490 x 388 x 60 mm
