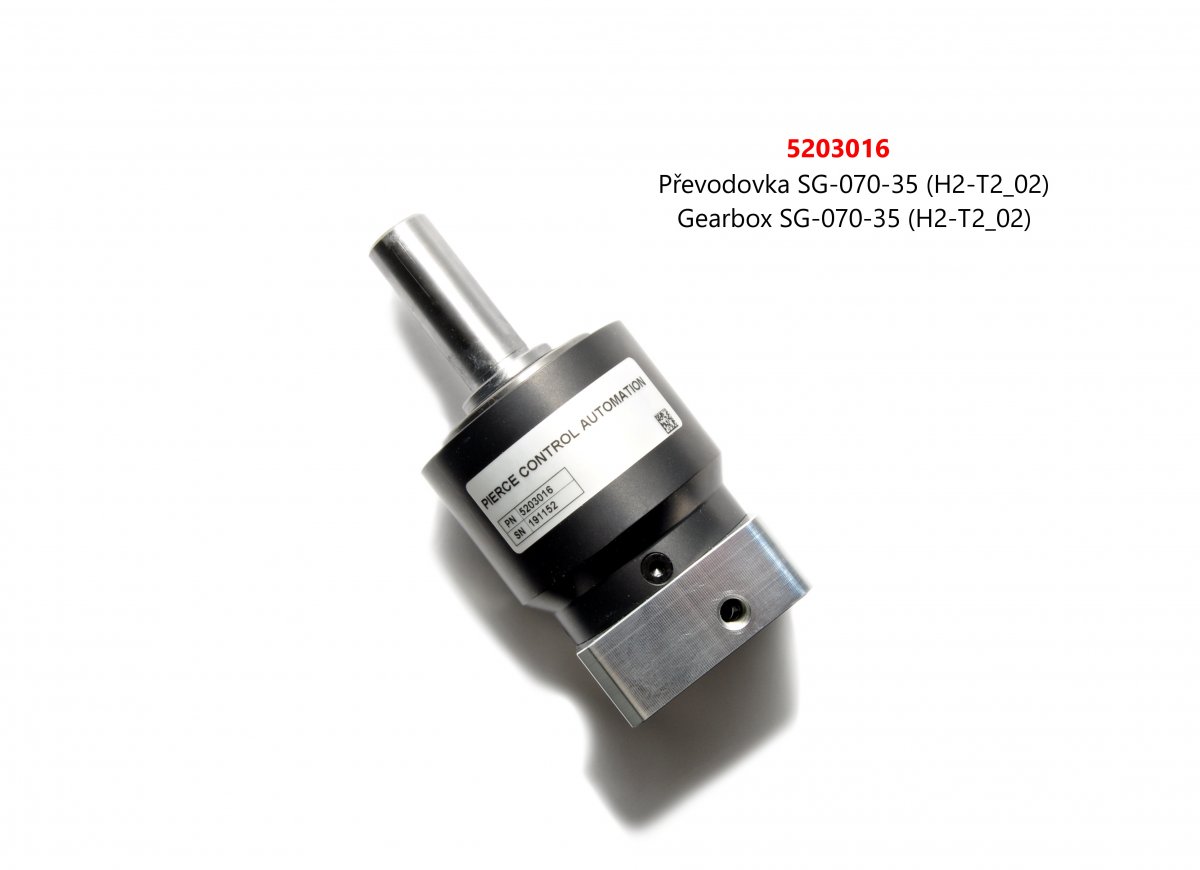

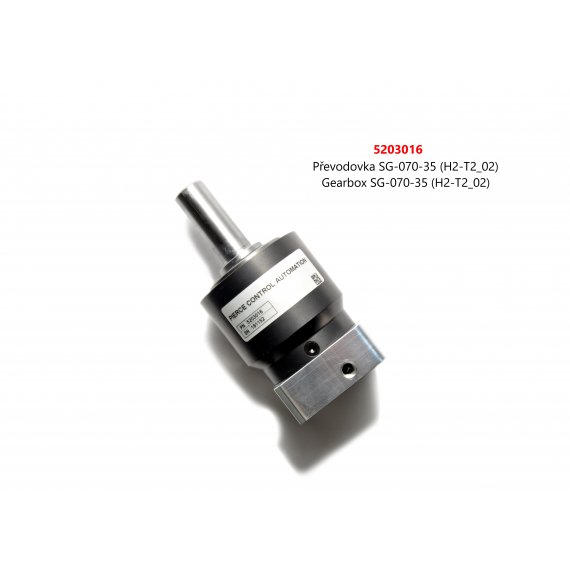

Gearbox SG-070-35 (H2-T2_02)

 * This is a new type of gearbox that requires a special flange If It is supposed to be mounted on an older TGT2 servomotor. In this case we ask customers to include this information in their order.

* Replacement fot p.n. 5203012 - Gearbox SG-070-35 (H2-T2)

Features of planetary gearboxes:

• Planetary gears offer the advantage of very high power transmission capabilities per unit volume of space and weight
• Low backlash facilitates the need for precise positioning in automation applications
• Gearboxes perform the important functions of reducing speed and multiplying torque
• Inertia ratio of load and motor can be matched to enable servomotors to operate with high dynamics of the drive
• Low backlash also reduces shock loads in dynamic reversing applications
• Planetary gearboxes have high mechanical efficiency
• Maintenance free

SG precision planetary gearboxes are suitable for applications that require mechanical resistance and economy solution.

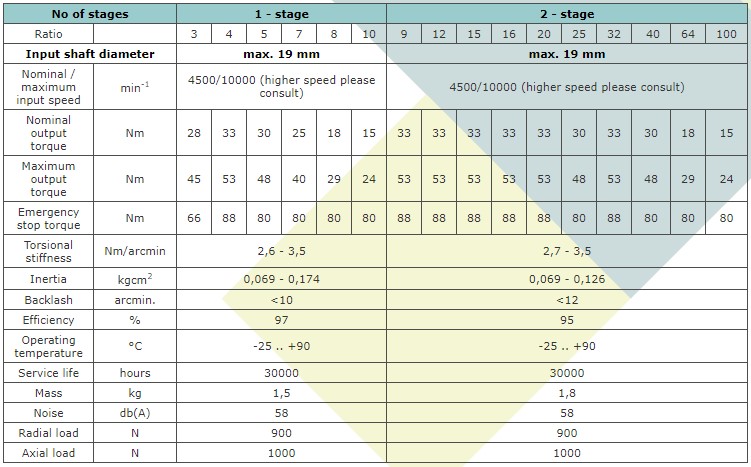

Technical specification:

Dimensions:

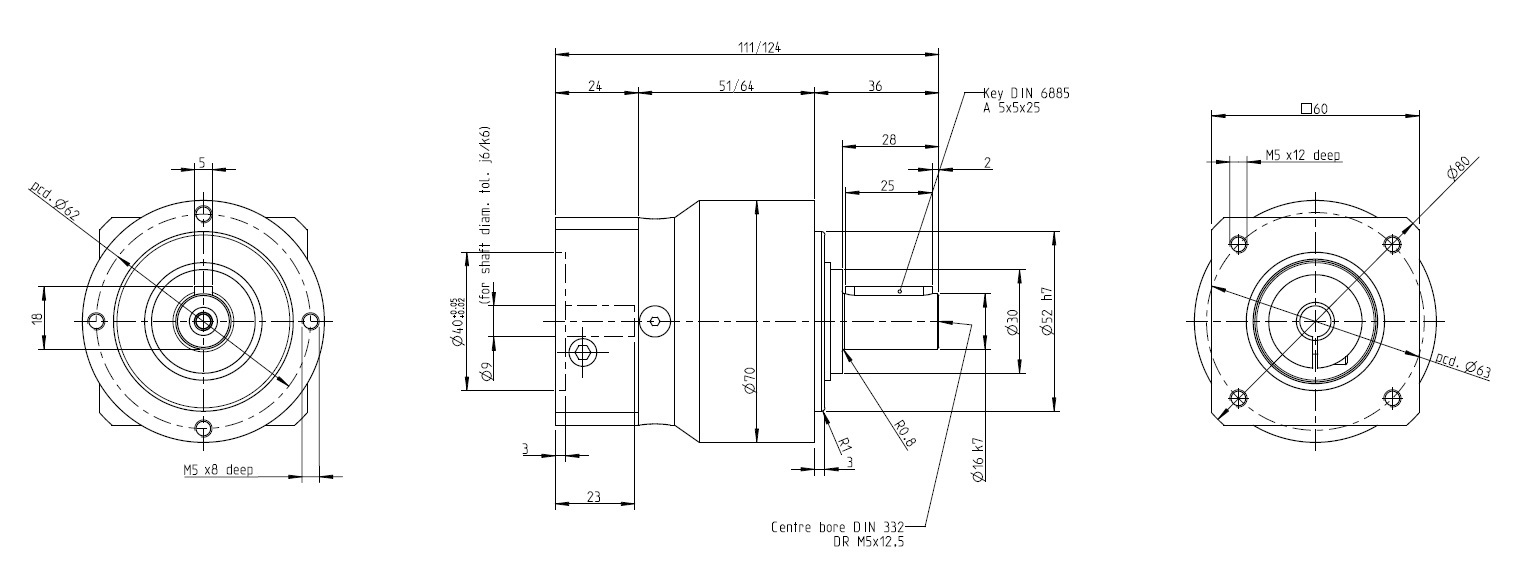

1/2 - stage, flange for TGN2, TGT2:

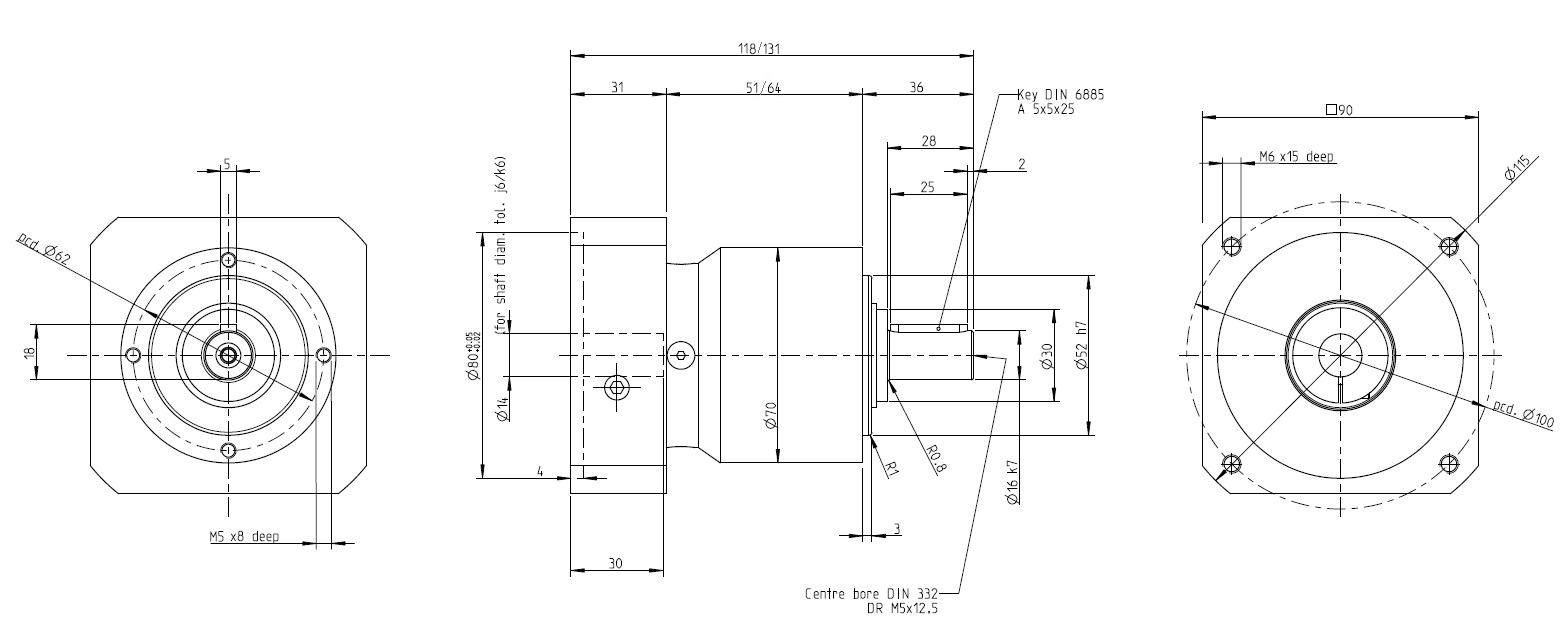

1/2 - stage, flange for TGN3:

Source: Planetary gearbox SG 070
