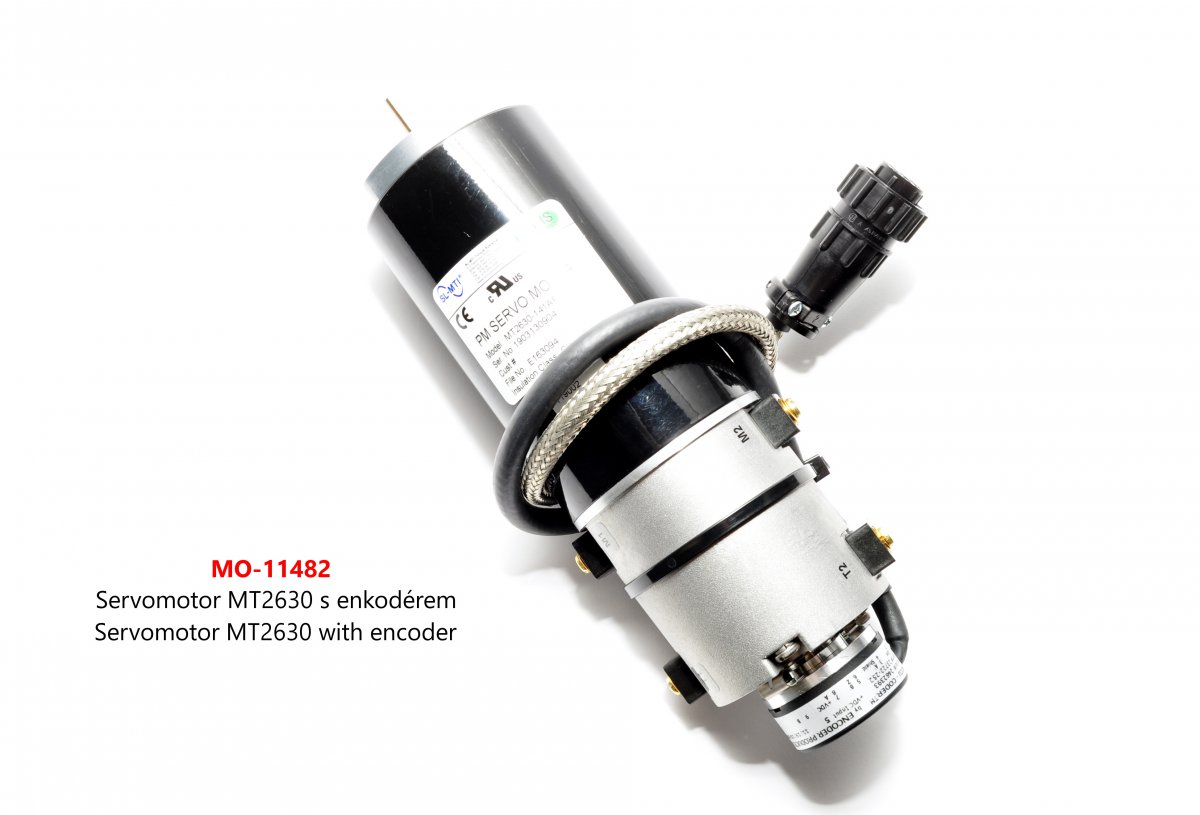

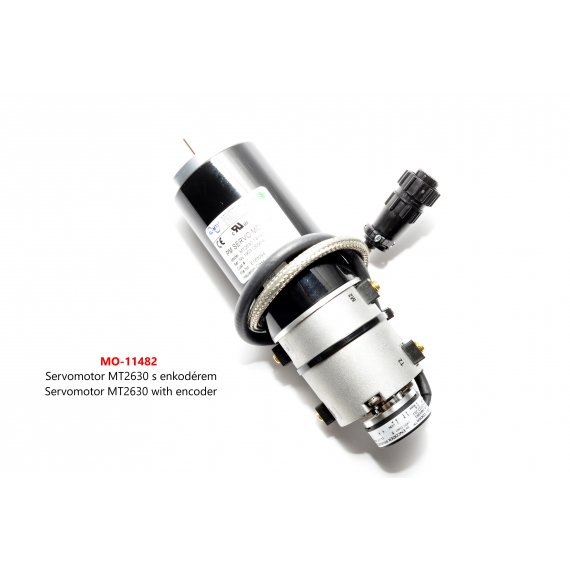

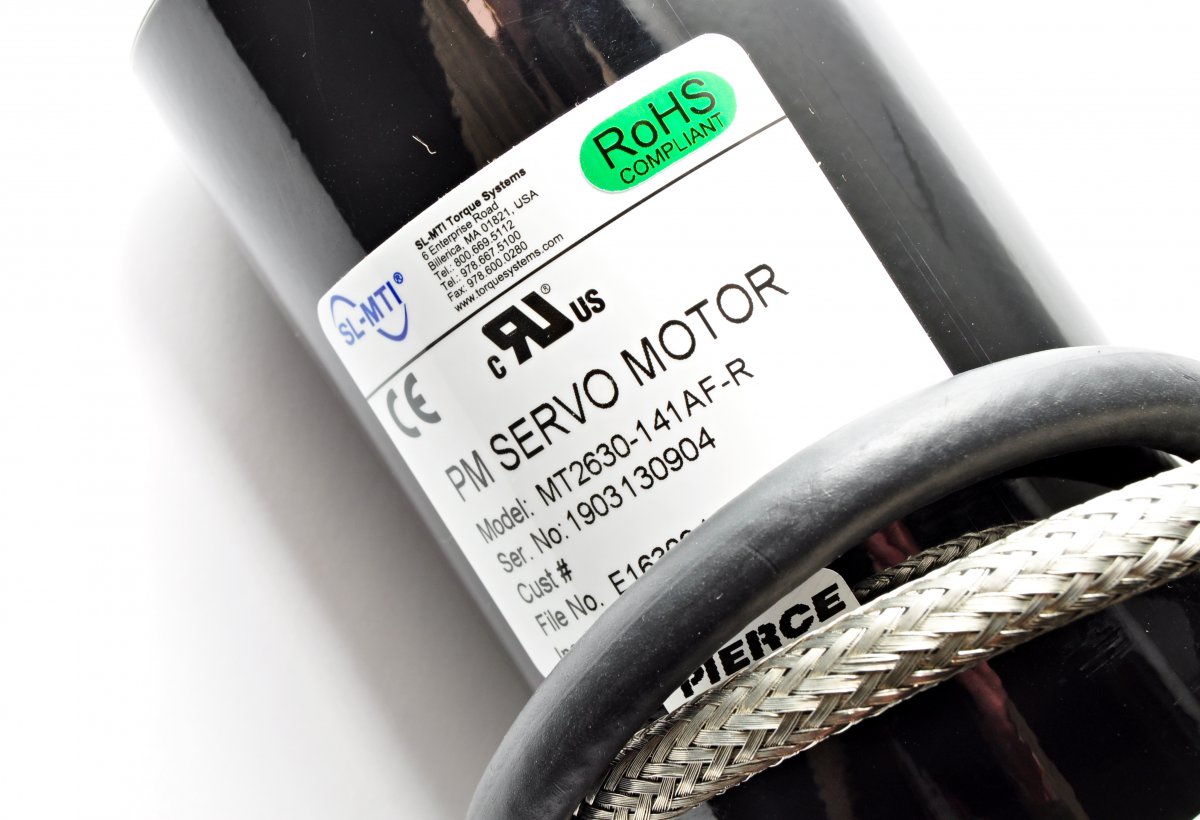

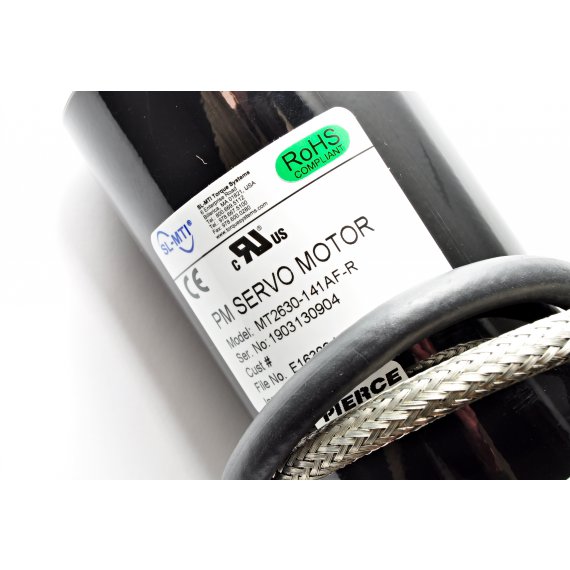

SERVOMOTOR MT2630
MTI-Torque Systems specializes in the design of high performance brush servo motors that provide efficiency, flexibility of application, and a long and trouble-free service life.
The TORQUEMASTER 2600 Series of brush servo motors has fast response, accurate control and high torque-to-inertia ratios. The 2600 Series provides smooth operation in a full range of speeds. The 2600 helps deliver an effective and highly efficient motion control solution for a wide range of applications for your everyday servo motor requirements. These applications include factory automation, packaging robotics, machine tools, medical instruments and more.
Performance benefits:
- Delivers smooth and superior low speed performanceand maximum power ratings with low thermal resistance for high speed performance.
- Maximum torque in a smaller package
- Rugged industrial construction
- High torque-to-inertia ratio delivers maximum torque per frame size

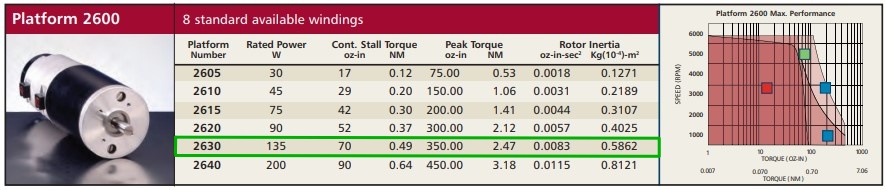

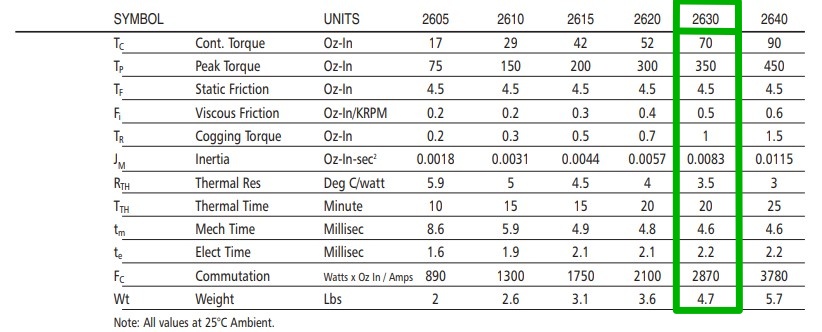

Technical specification:

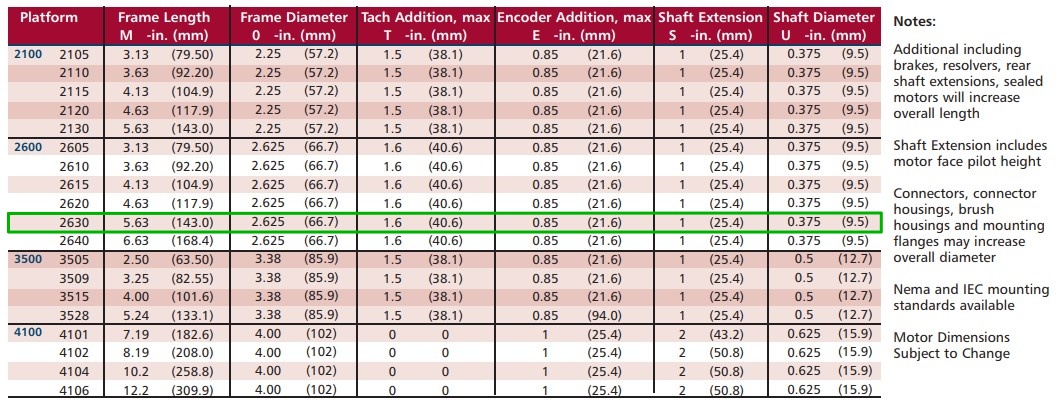

Dimensions:

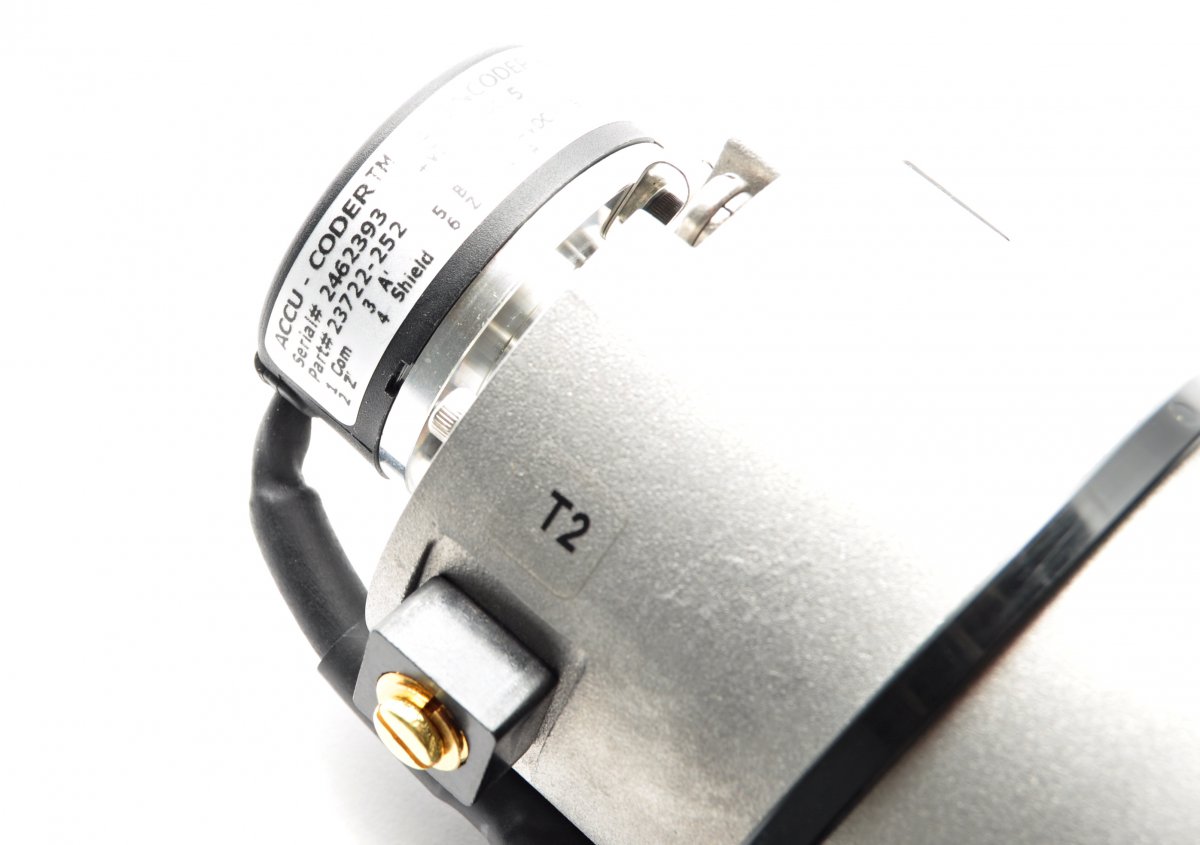

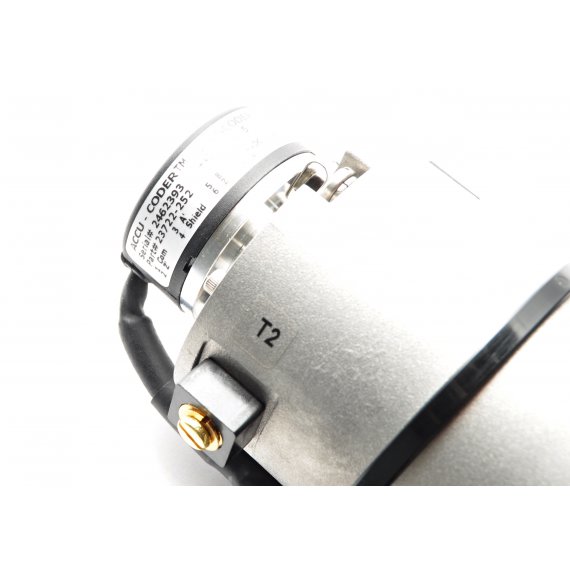

ENCODER
