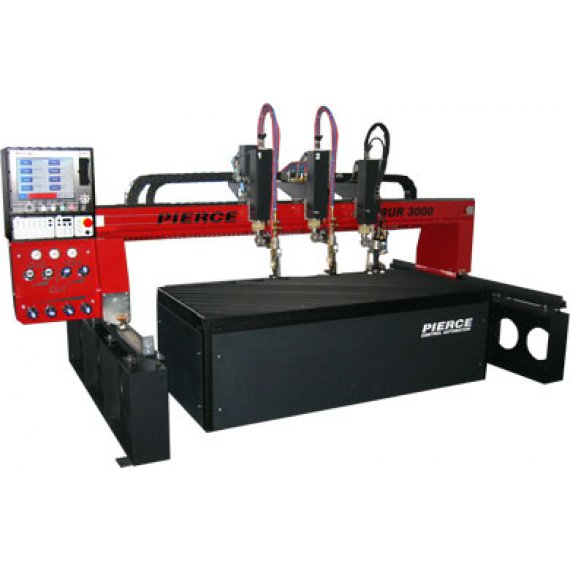

CNC cutting machine for oxy-fuel and plasma cutting
With respect to Its structural and dynamic properties the RUR CNC cutting machine is suitable not only for oxy-fuel and conventional plasma cutting but also for High Definition plasma cutting. The RUR is characterized by a substantial fully welded machine frame using a digitally synchronized twin side motion control system
fitted to both longitudinal rails of the machine. The machine also incorporates a high level of dynamic automation.
|
BASIC EQUIPMENT
|
OPTIONAL EQUIPMENT
|
TECHNICAL SPECIFICATION
| RUR | 2500 | 3000 | 3500 | 4000 |
| Max. number of torches | 4 | |||
| Rail span | 2 500 mm | 3 000 mm | 3 500 mm | 4 000 mm |
| Cutting width* - 1 torch | 2 200 mm | 2 700 mm | 3 200 mm | 3 700 mm |
| Cutting width* - 2 torches | 2 200 mm | 2 700 mm | 3 200 mm | 3 700 mm |
| Cutting width* - 3 torches | 2 070 mm | 2 570 mm | 3 070 mm | 3 570 mm |
| Cutting width* - 4 torches | 1 940 mm | 2 440 mm | 2 940 mm | 3 440 mm |
| Cutting length | By customer request | |||
| Min. parallel cut | 90 mm | |||
| Cutting speed | 0-12 000 (20 000) mm/min. | |||
| Standard cutting thickness | Up to 200 mm | |||
| Machine width | 3 340 mm | 3 840 mm | 4 340 mm | 4 840 mm |
| Machine width with 3 torches parking | Extra 300 mm | |||
| Machine length | 1 020 mm | |||
| Machine height including rails | 1 700 mm | |||
| Cutting table height | 700 mm | |||
| Plasma system | By customer request | |||
| Supply voltage | 230V/50Hz | |||
* Technical data are valid for the application of oxy-fuel torches. For data of alternative machine configuration, please, contact us.
