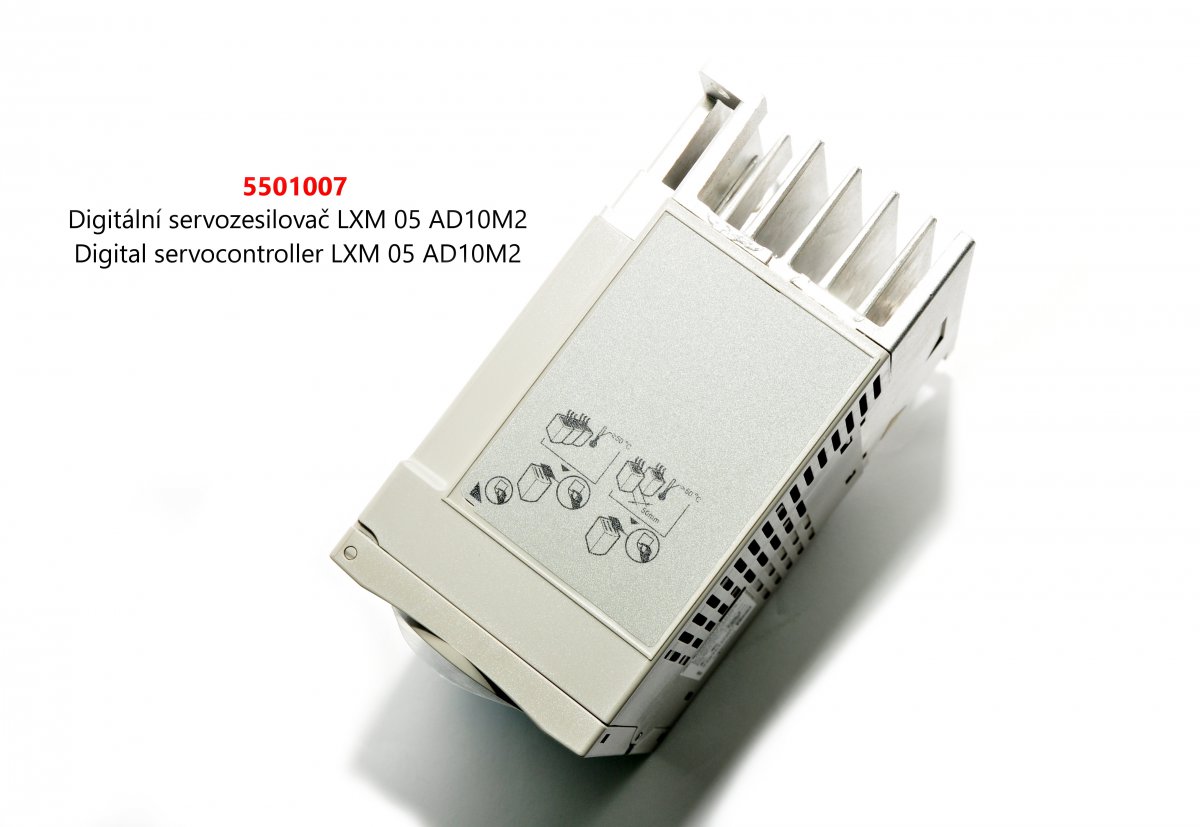

Part number: 5501007
Unit: pcs
Dimensions: 7,2x14,5x14,0 cm
Weight: 1,10 kg
REMNANT SALE

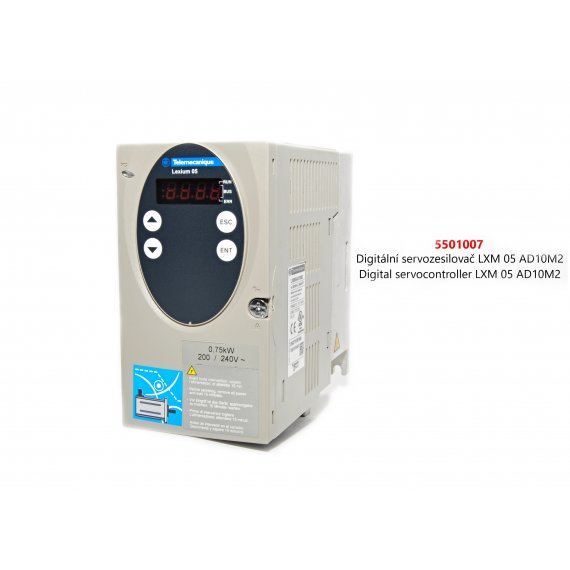

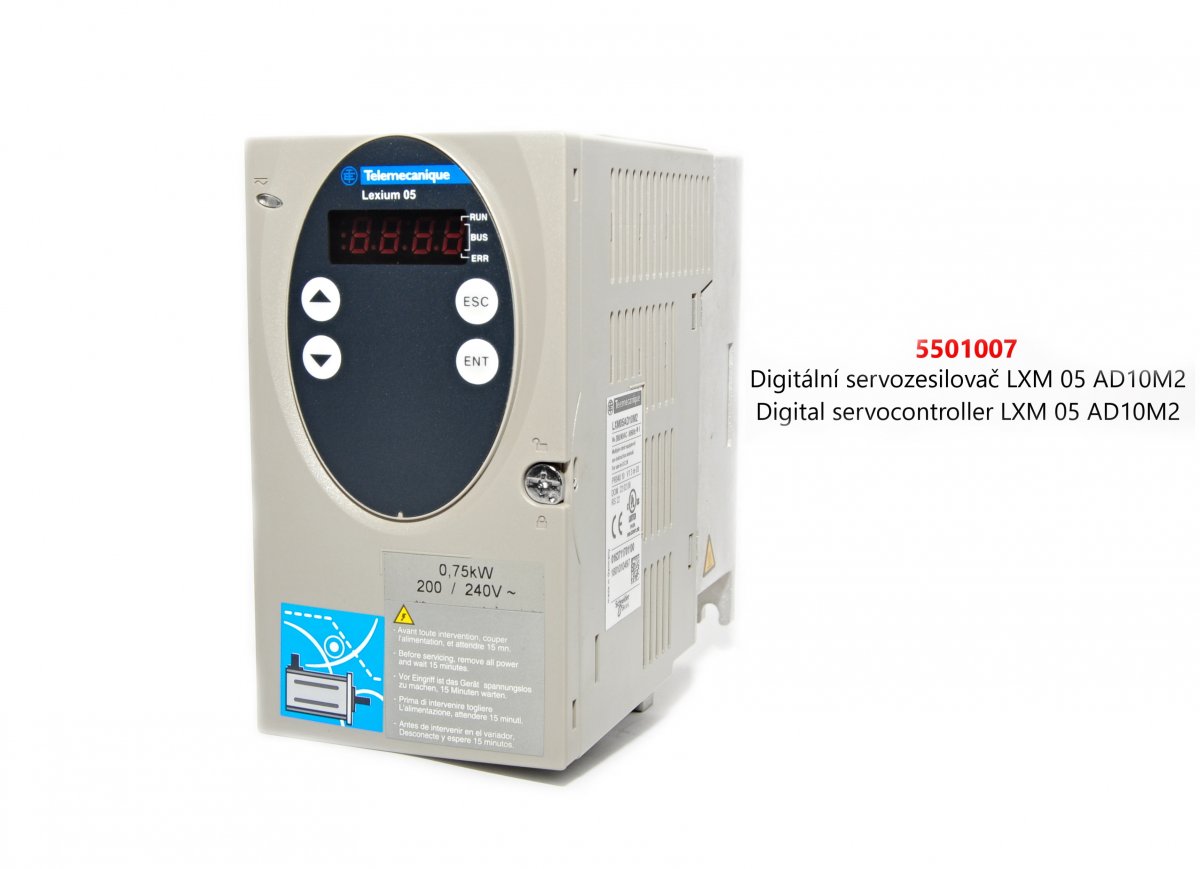

The LXM05A is an AC servo drive that can be used anywhere. The high level of integration, compact size, facility to mount the servo drives side-byside and their ability to operate at ambient temperatures of 50°C without derating, all mean that enclosures can be smaller.
The Lexium 05 servo drive integrates a large number of functions, enabling it to be used in a wide range of industrial applications. There are two main function families:
| 1) Conventional adjustment functions: | |
|
|
| 2) Operating modes: | |
|
|
Two types of operation are possible: Local Via communication buses and networks. The front panel includes an input panel (HMI, HumanMachineInterface) with display and keypad for setting parameters. Spring terminals are used to reduce wiring time and avoid periodic checking of tightening torques. The PowerSuite software workshop is used to configure, adjust and debug the Lexium 05 axis. It can be used with a direct connection or a Bluetooth® wireless connection.

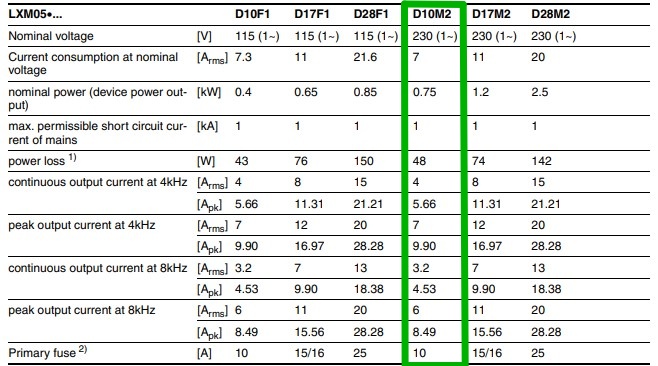

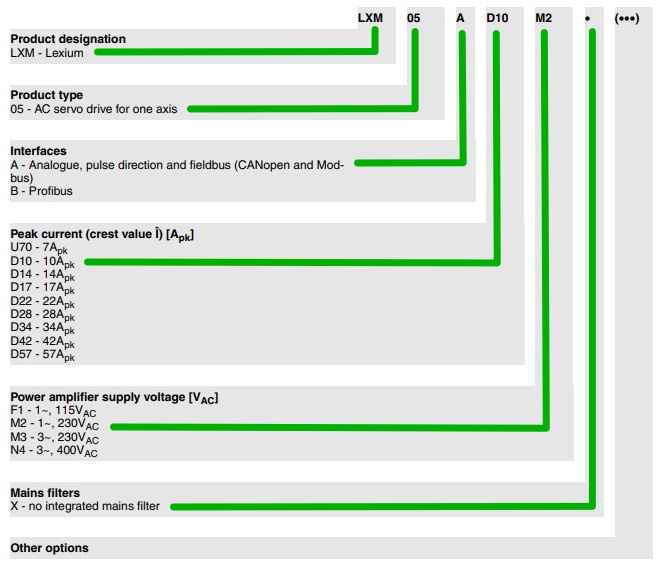

Technical specification:

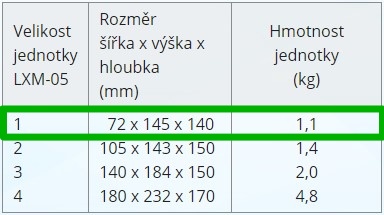

Dimensions and weight:
Source: Servo drive LXM-05
