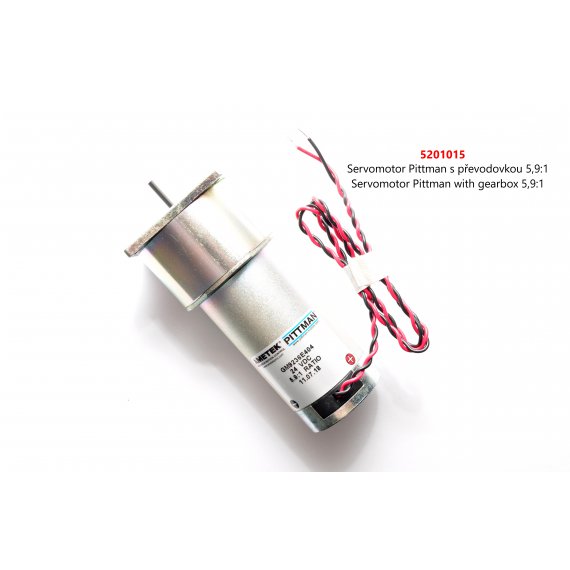

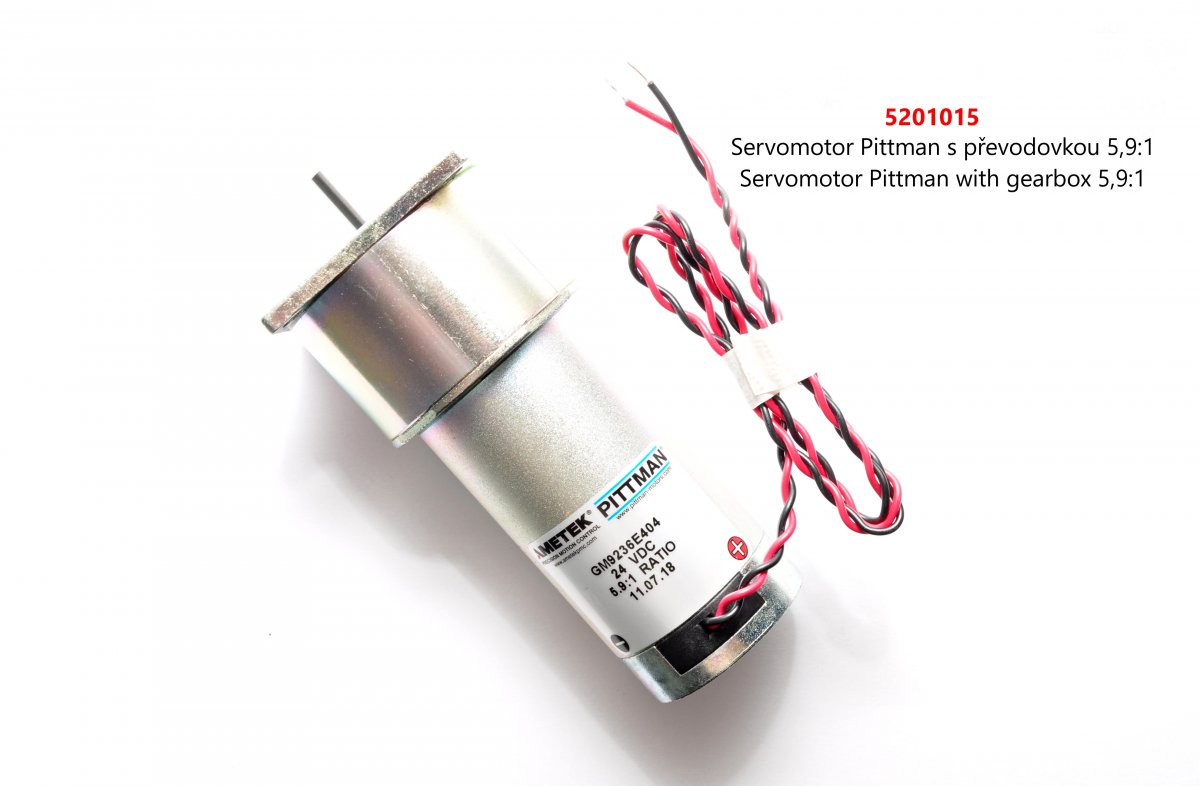

Servomottor Pittman with gearbox 5,9:1 is a commutaded DC motor (40 mm diameter). This servomotor offers smooth, quiet operation and long life. An innovative cartridge brush assembly reduces audible and electrical noise and significantly improves brush life by maintaining optimum brush force throughout the life of the motor.
Technical specification:

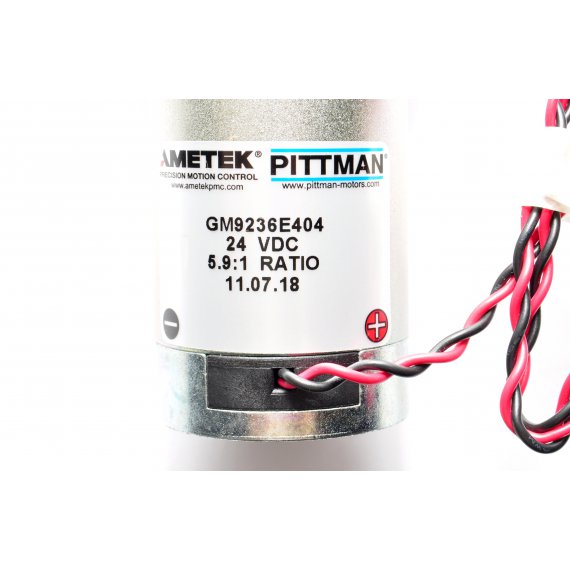

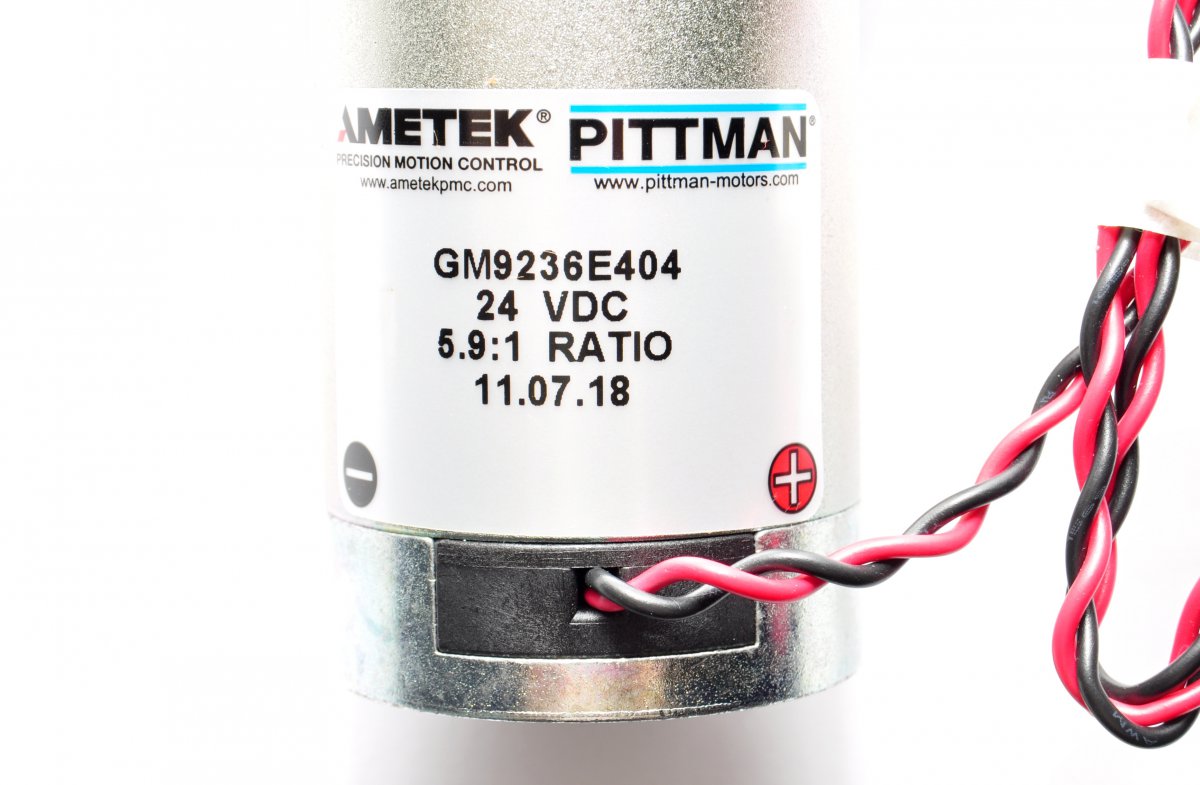

- Type GM9236E404
- For OXY head
Features:
- Speeds 6,000 RPM
- DC bus voltage 24 Vdc
- Eight standard windings
- 2 pole stator with ceramic magnets
- 7 slot skewed armature cogging reduction
- Sintered bronze bearings
- Copper graphite brushes
Source: Servomotor Pittman with gearbox 5,9:1
