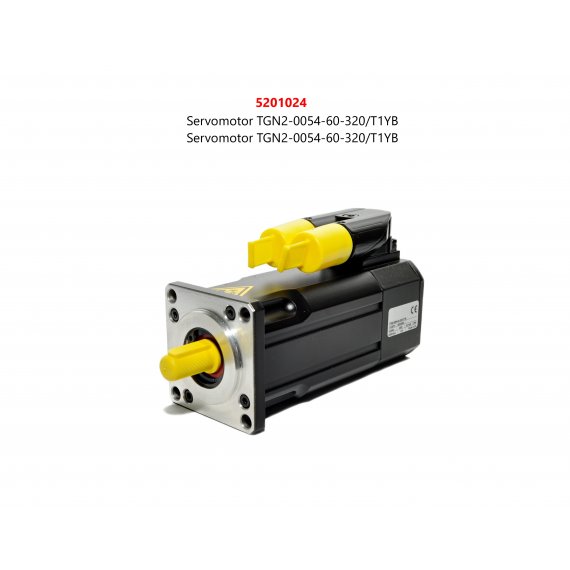

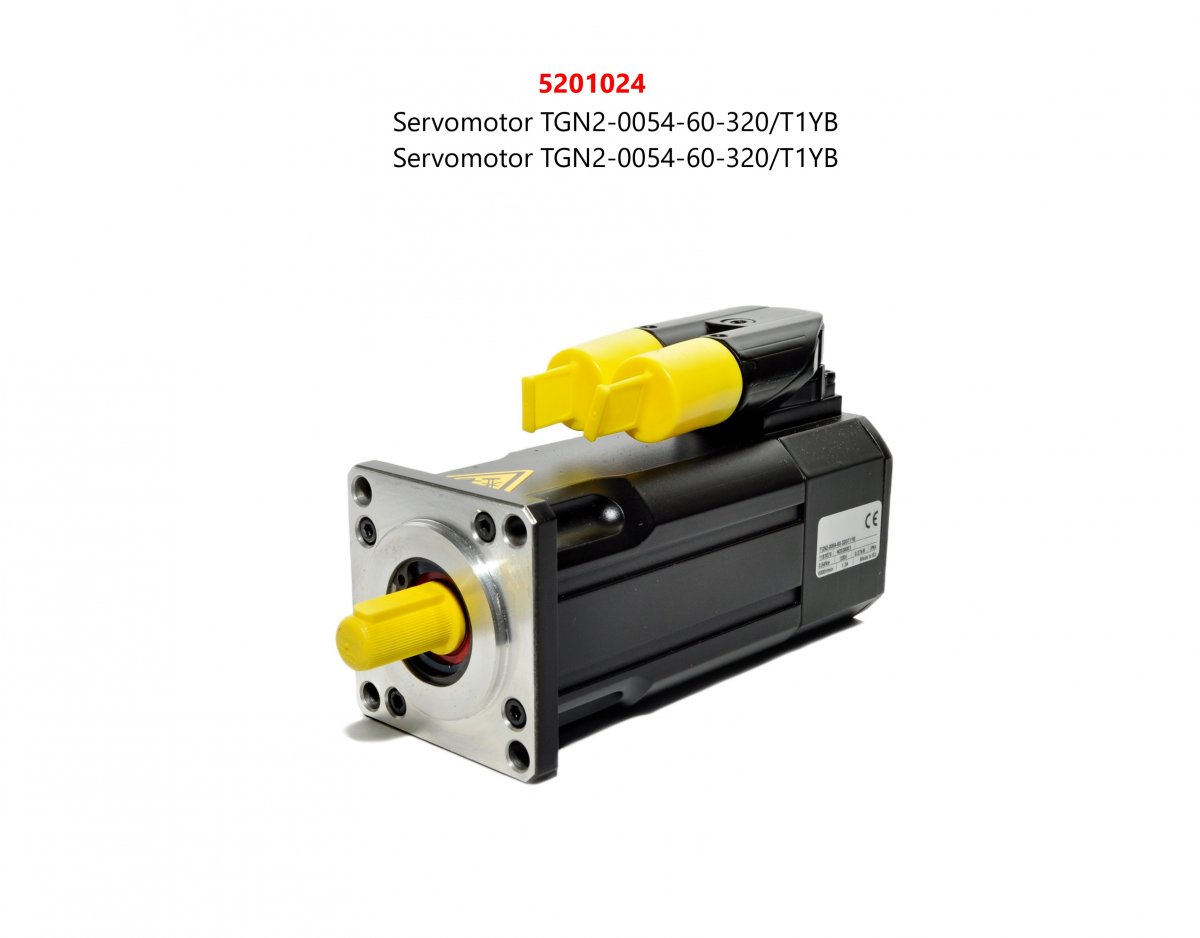

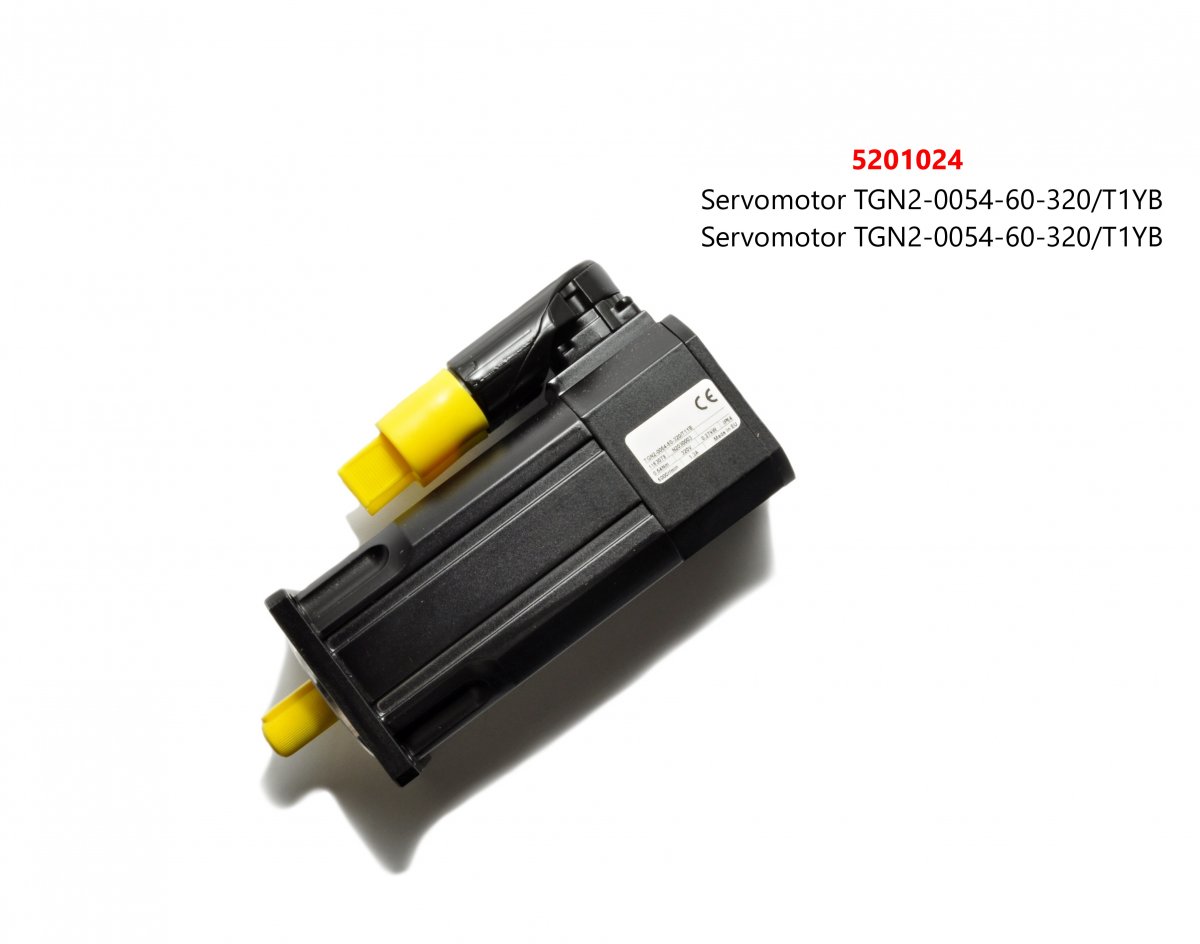

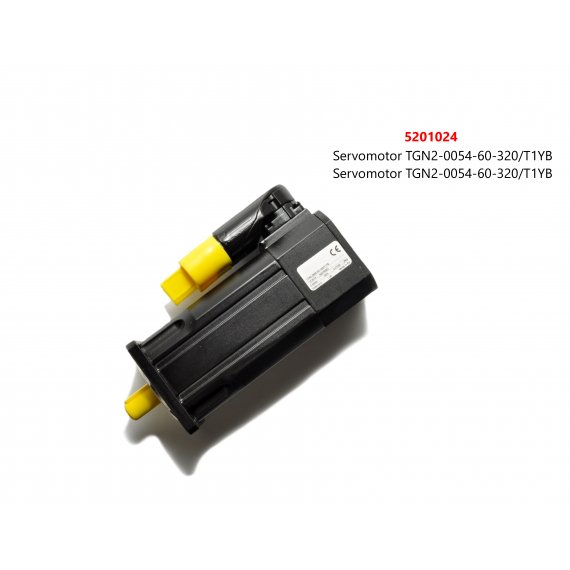

Servomotor TGN2-0054-60-320/T1YB

Part number: 5201024

Unit: pcs
Dimensions: 14,5x7,5x6,0 cm
Weight: 1,09 kg

TGN servomotors are AC synchronous servomotors. Higher torque, then higher power of the TGN motor range is achieved by improving escape of heat from the stator to the front flange and by optimized magnetic circuit. Shortening of stator plates and segmented stator windings with higher density of magnetic field allows shortening of the motor length.

Servomotors TGN2 series have 6 poles. Optimal applications for these motors are operations requiring extremely low and steady speeds as well as small dimensions. The standard sensor for common applications is the  resolver.

Technical specification:

  • Design: flange (B5)
  • Colour: matt black
  • Bearings: closed ball-bearings with grease
  • Protection: IP64 (from the shaft side IP54)
  • Cooling: convection (type A)
  • Temperature: according to ČSN EN 60034 (rise of temperature up to 110°C, ambient temperature up to 40°C)
  • Load cycle: continual (S1)
  • Electrical connection: connectors, counterparts to connectors

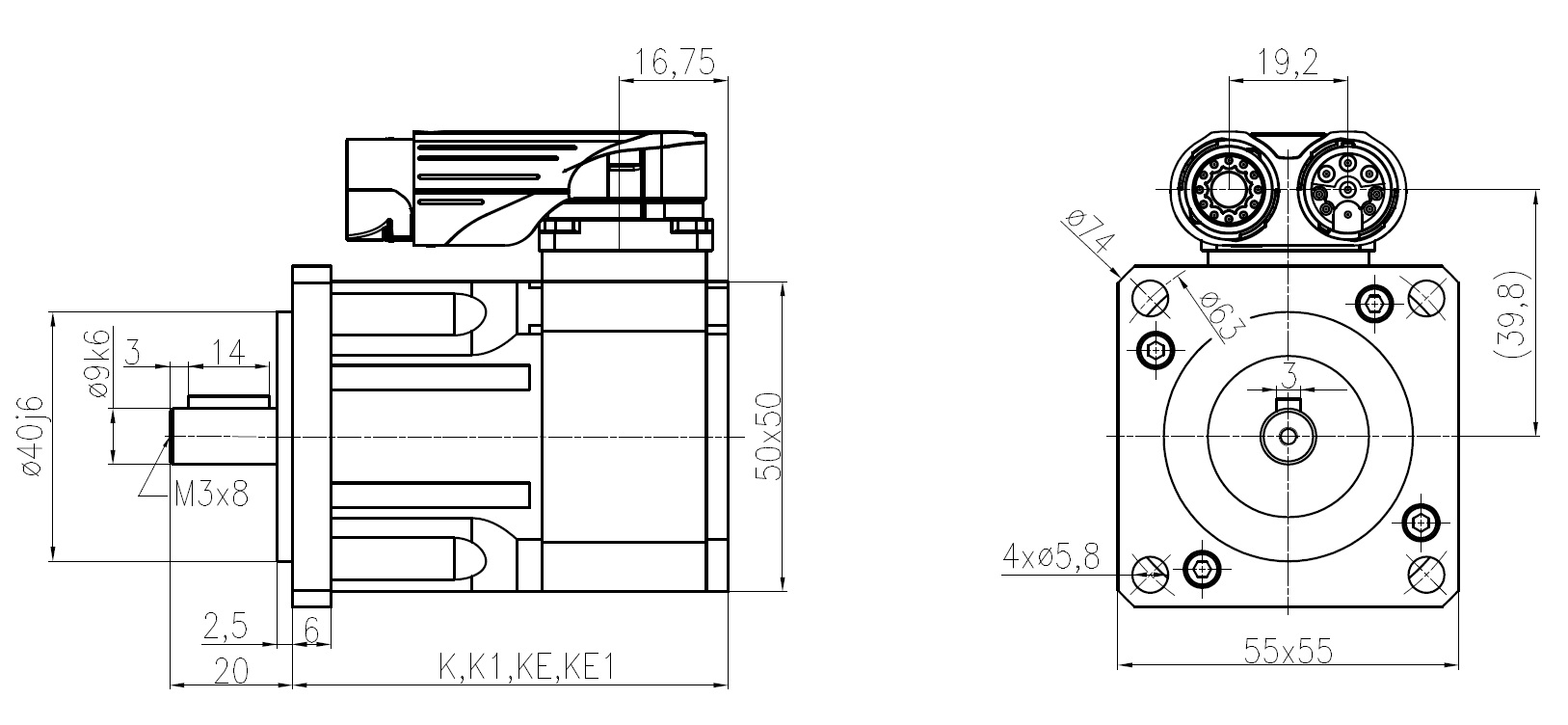

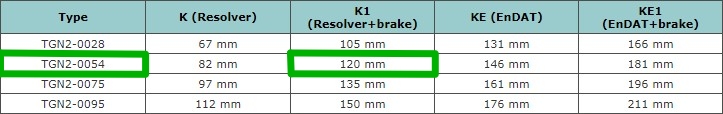

Dimensions:

Source: TGN Servomotors
