Servomotor TGN2 + Gearbox SG70

SERVOMOTOR TGN2-0054-60-320

TGN servomotors are AC synchronous servomotors. Higher torque, then higher power of the TGN motor range is achieved by improving escape of heat from the stator to the front flange and by optimized magnetic circuit. Shortening of stator plates and segmented stator windings with higher density of magnetic field allows shortening of the motor length.

Servomotors TGN2 series have 6 poles. Optimal applications for these motors are operations requiring extremely low and steady speeds as well as small dimensions. The standard sensor for common applications is the  resolver.

Technical specification:

• Design: flange (B5)
• Colour: matt black
• Bearings: closed ball-bearings with grease
• Protection: IP64 (from the shaft side IP54)
• Cooling: convection (type A)
• Temperature: according to ČSN EN 60034 (rise of temperature up to 110°C, ambient temperature up to 40°C)
• Load cycle: continual (S1)
• Electrical connection: connectors, counterparts to connectors

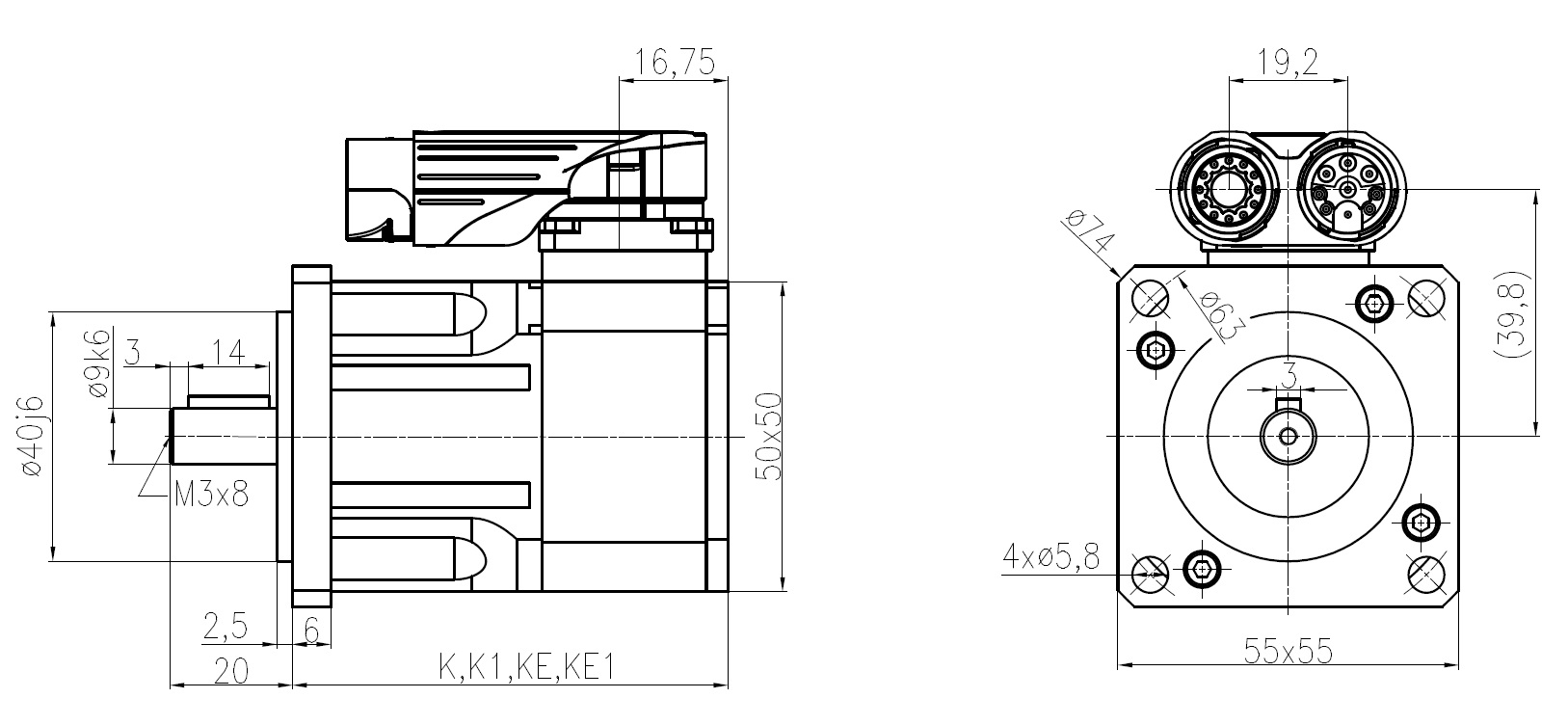

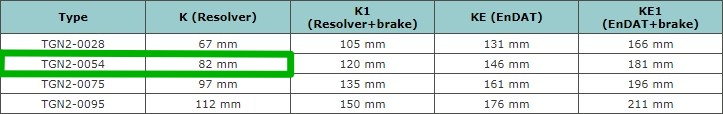

Dimensions:

Source: TGN Servomotors

PLANETARY GEARBOX SG-070-35 (H2-T2_02)

Features of planetary gearboxes:

• Planetary gears offer the advantage of very high power transmission capabilities per unit volume of space and weight
• Low backlash facilitates the need for precise positioning in automation applications
• Gearboxes perform the important functions of reducing speed and multiplying torque
• Inertia ratio of load and motor can be matched to enable servomotors to operate with high dynamics of the drive
• Low backlash also reduces shock loads in dynamic reversing applications
• Planetary gearboxes have high mechanical efficiency
• Maintenance free

SG precision planetary gearboxes are suitable for applications that require mechanical resistance and economy solution.

Technical specification:

Dimensions:

1/2 - stage, flange for TGN2:

Source: Planetary gearbox SG 070
