Servomotor TGT2 + Gearbox SG70

SERVOMOTOR TGT2 0040-30-24/T124

The TGT series AC synchronous servomotors are characterized by: low inertia, small dimensions, high dynamics, high adaptability and reliability. The TGT servomotor series have features for wide purpose applications. The groove bevel in the stator and segment alignments of magnets on the rotor decrease the torque pulsations.

The flexible design of servomotors allows different feedback sensor mounting. One of the most frequent type is resolver. It is a brushless electric appliance, used for rotor position measuring and for commutation angle derivation. Resolver is commonly used as a position and angle speed sensor in regulation circuits of servoamplifiers.

The temperature of the winding is monitored by sensors in the stator windings. The temperature is then signaled via an electrically isolated contact (thermo contact or posistor). The sensors are set so that the winding temperature does not exceed 150°C.

Technical specification:

• Design - flange (B5)
• Colour - matt black
• Bearings - closed ball-bearings with grease
• Protection - IP54
• Insulation class - F
• Cooling - convection (type A)
• Temperature - rise of temperature up to 110°C, ambient temperature up to 40°C
• Load cycle - continual (S1)
• Electrical connection - connectors or cable bushings

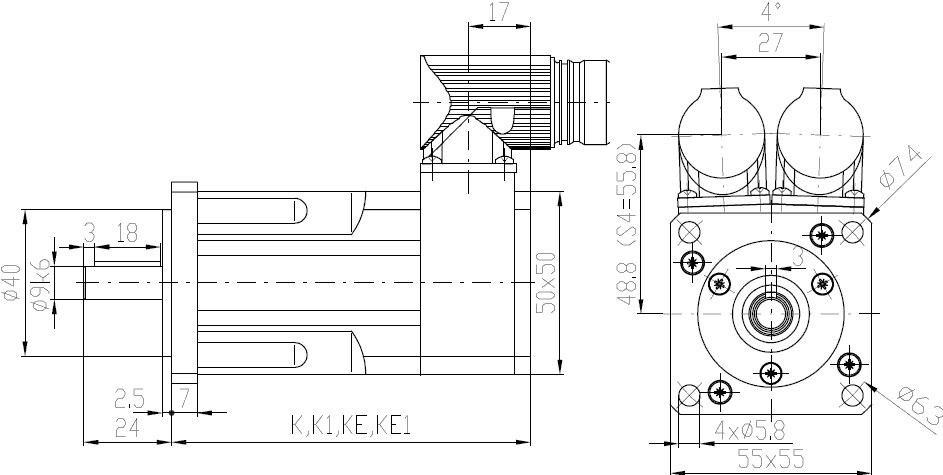

Dimensions:

PLANETARY GEARBOX SG-070-35 (H2-T2_02)

 Features of planetary gearboxes:

• Planetary gears offer the advantage of very high power transmission capabilities per unit volume of space and weight
• Low backlash facilitates the need for precise positioning in automation applications
• Gearboxes perform the important functions of reducing speed and multiplying torque
• Inertia ratio of load and motor can be matched to enable servomotors to operate with high dynamics of the drive
• Low backlash also reduces shock loads in dynamic reversing applications
• Planetary gearboxes have high mechanical efficiency
• Maintenance free

SG precision planetary gearboxes are suitable for applications that require mechanical resistance and economy solution.

Technical specification:

Dimensions:

1/2 - stage, flange for TGT2:

Source: TGT Servomotors  + Planetary gearbox SG 070
