SPITFIRE

CNC cutting machine for pasma cutting

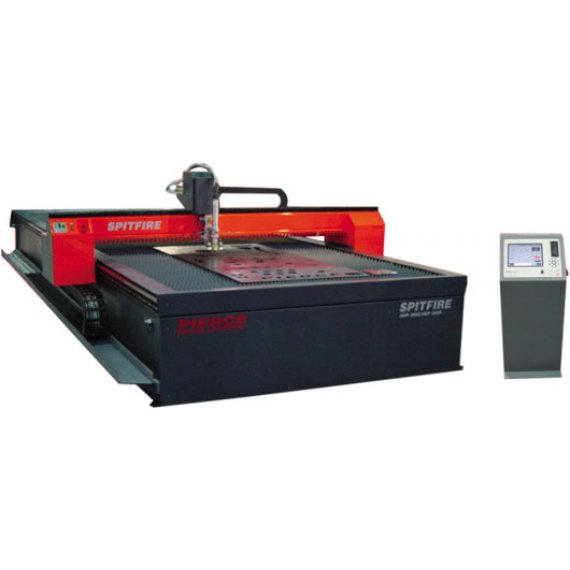

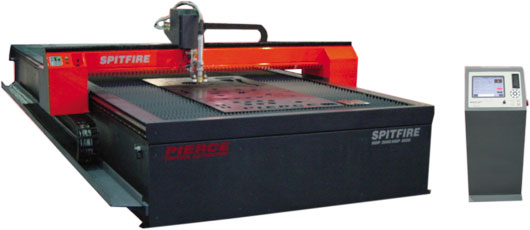

The third generation SPITFIRE is designed for intricate high definition plasma arc shape cutting. It features a compact portal machine frame design and integral fume extraction cutting table. The control pedestal is remotely mounted from the cutting table to achieve full benefit of the compact integral design.

details

BASIC EQUIPMENT

Fully welded portal without bolted joints
Linear bearing in cross axis
Backlash-free rack & pinion positioning
AC servo-drive system (12 000 mm/min.)
Digital synchronisation in longitudinal axis
PIERCE 19“ control system with touch screen
Cutting table with integral fume extraction ducts
Floating cutting head
Speed control of torch vertical motion
Automatic initial height sensing of plasma torch
Arc voltage height control of plasma torch
Limit switch protection in each axis

OPTIONAL EQUIPMENT

Plasma system by customer request
AC servo-drive system (20 000 mm/min.)
Pneumatic anti-collision system
Plasma marker
Pneumatic marker

TECHNICAL SPECIFICATION

SPITFIRE	1500	2000
Max. cutting thickness	15 mm
Cutting width	1 500 mm	2 000 mm
Cutting length	3 000-6 000 mm
Cutting speed	0-12 000 (20 000) mm/min.
Machine width	2 520 mm	3 020 mm
Machine length	3 650 mm	6 650 mm
Machine height	1 400 mm
Cutting table height	700 mm
Supply voltage	230V/50Hz
